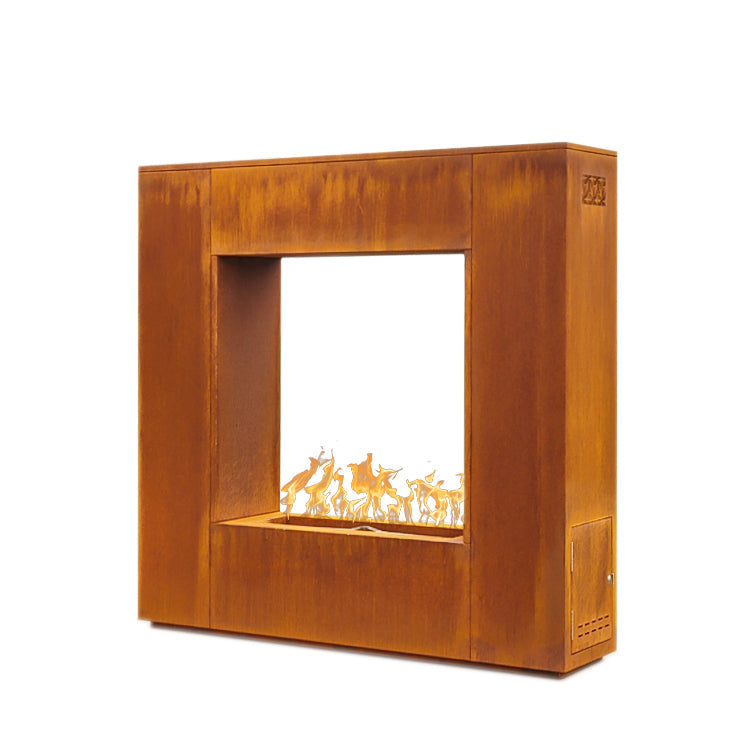

Williams Fireplace in Corten Steel by The Outdoor Plus

Williams Fireplace in Corten Steel by The Outdoor Plus

The Williams Fireplace boasts an elegant design with a built-in ventilation system. Made from durable corten steel, this outdoor fireplace can withstand harsh weather conditions and remain stable for years to come. Its ventilation system extracts warm air, making it one of the safest fireplaces on the market. The stunning fire feature comes with a linear burner that produces robust flames to keep you warm.

Proudly manufactured in the U.S.A.
Individually handcrafted. Because of its handmade nature slight variations in color and texture may occur.

Features:

• Available in 3 Sizes
• Material: Corten Steel
• Comes with Fire Pan, Burner, Gas Orifice, Gas Hose, Key Valve with Key

• Includes access doors for LP tank storage
• Ignition Type:
• Match Lit Ignition
• Electronic Ignition
• Fuel type: Natural Gas or Propane.

• Heat output: 65K - 125K BTU

Ignition Options:

Manual:

a. Match-Lit: All TOP Fire Pit tables are available with the Match Lit Ignition Option which allows you to ignite the Fire Pit by turning the Gas Key Valve and lighting the burner with a matchstick or a lighter.
b. Match-Lit with Flame sense: The Match Lit with Flame sense system comes with a thermocouple flame sensor to ensure the feature is lit properly and stops gas flow if the flame is ever blown out.
c. Flame Sense & Push Button Spark Ignitor: The Flame Sense & Spark Ignition system includes a push button spark Ignitor along with the thermocouple flame sensor. This system requires 1 AA Battery to operate.

Automatic Electronic:

a. Electronic - E12V Low Voltage: The E12V compact system can be controlled by a pool controller, remote control, or home automated systems to provide effortless control of the fire feature. This LC Certified unit is compatible with 12VAC only (12V to 110V transformers are available) and features a glow plug igniter designed to withstand the elements.
b. Electronic - 110V Plug & Play: The 110V Smart Weather Electronic Ignition System (SWEIS) Kits comes with an Electronic Valve with a 3-Prong Plug and a Pilot Igniter. TOP pilots use an hot surface igniter (HSI) for pilot ignition and a thermocouple flame sensor to ensure the feature is lit properly and stops gas flow if the flame is ever blown out.

Add-on Options for Automatic Electronic:

Accessories (can be used indivifdually or added to a Safety Tower) :

• Gas Timer & E-Stop: A gas shut off device with timer that comes with built-in emergency stop.
• Emergency Stop Button with Key: Includes the emergency stop button with a lock and key to activate the E-stop function.
• Electrical Emergency Shut-Off Button: Emergency stop button with a outdoor rated electrical box and cover to stop all operations.
• Electrical Dial Timer: the electrical dial timer for time-controlled used of the fire feature. It has a 1 hour max runtime.
• 1-Hour Button Timer: In-Wall 1-Hour Timer adds convenience and ease to your outdoor fire and water features. To use it, you simply have to press the button to cycle through the timer options. Once you’ve selected the desired time, the timer takes care of the rest.
• Remote Control & Wireless Receiver: The remote control  wireless receiver is accompanied by an outdoor Rated Electrical Box. The kit includes remote, Receiver, a switch

Safety Tower Post:

The Safety Tower Post by TOP is a perfect addition when you want to have 2 or more accessories added to your fire feature. It can be installed at a safe distance from the fire feature for easy access.

• Safety Tower Post with 2 accesories: 5.25"L x 7.25"W x 36"H
• Safety Tower Post with 3 accesories: 5.25"L x 7.25"W x 48"H

Specifications:

Documents:

TOP Williams Fireplace - Specification Sheet

TOP Fires Pit Match Lit Ignition Manual

TOP Fires Pit Match Lit with Flame Sense Ignition Manual

TOP Fires Flame Sense with Spark Ignition Manual

TOP Fire Pit Low Voltage 12V Electronic Ignition Manual

TOP Fire Pit 110V Plug-n-Play Ignition Manual

IMPORTANT: Installation must be done by a Licensed Technician.

Warranty: 1 year against manufacturing defects.

Shipping: We offer Free standard shipping on all our products to the 48 lower contiguous states. Usually ships on a pallet to any address in the Continental USA. The truck driver will place your items curbside on your property but cannot assist with final placement.

Manufacturing Lead Time: This is a Made-To-Order item, manufactured in the color specified on your order. Manufacturing Lead time is approx 4-5 weeks.

Disclaimer: This product is considered a Custom Order as it is custom made upon order. The Patina/ Stain chosen is hand applied to the Product along with finishing touches after it is manufactured in accordance with your order. Cancellation of a custom product will result in forfeiture of the deposit.

 Prop 65 Warning: For more information go to www.P65Warnings.ca.gov.
