Fire Cube in GFRC Concrete by Archpot
The compact Fire Cube is great for smaller areas and is available with or without a propane door.

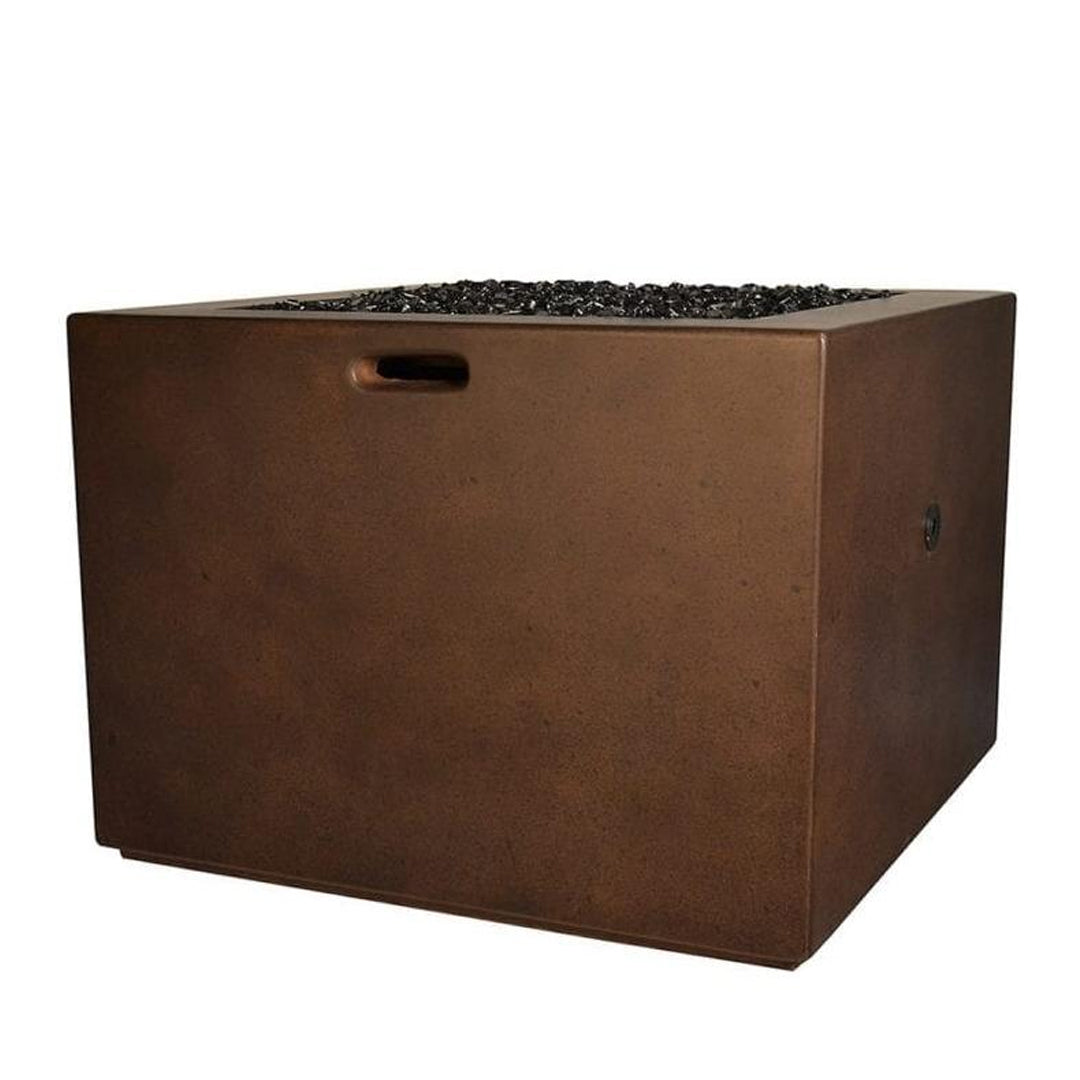

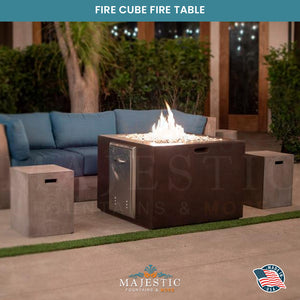

The Fire Cube is a compact and modern accent feature that is ideal for smaller outdoor spaces. Available with or without a propane door, this unit is cast from durable GFRC. Choose from a wide range of finish options and either manual or AWEIS burner systems.

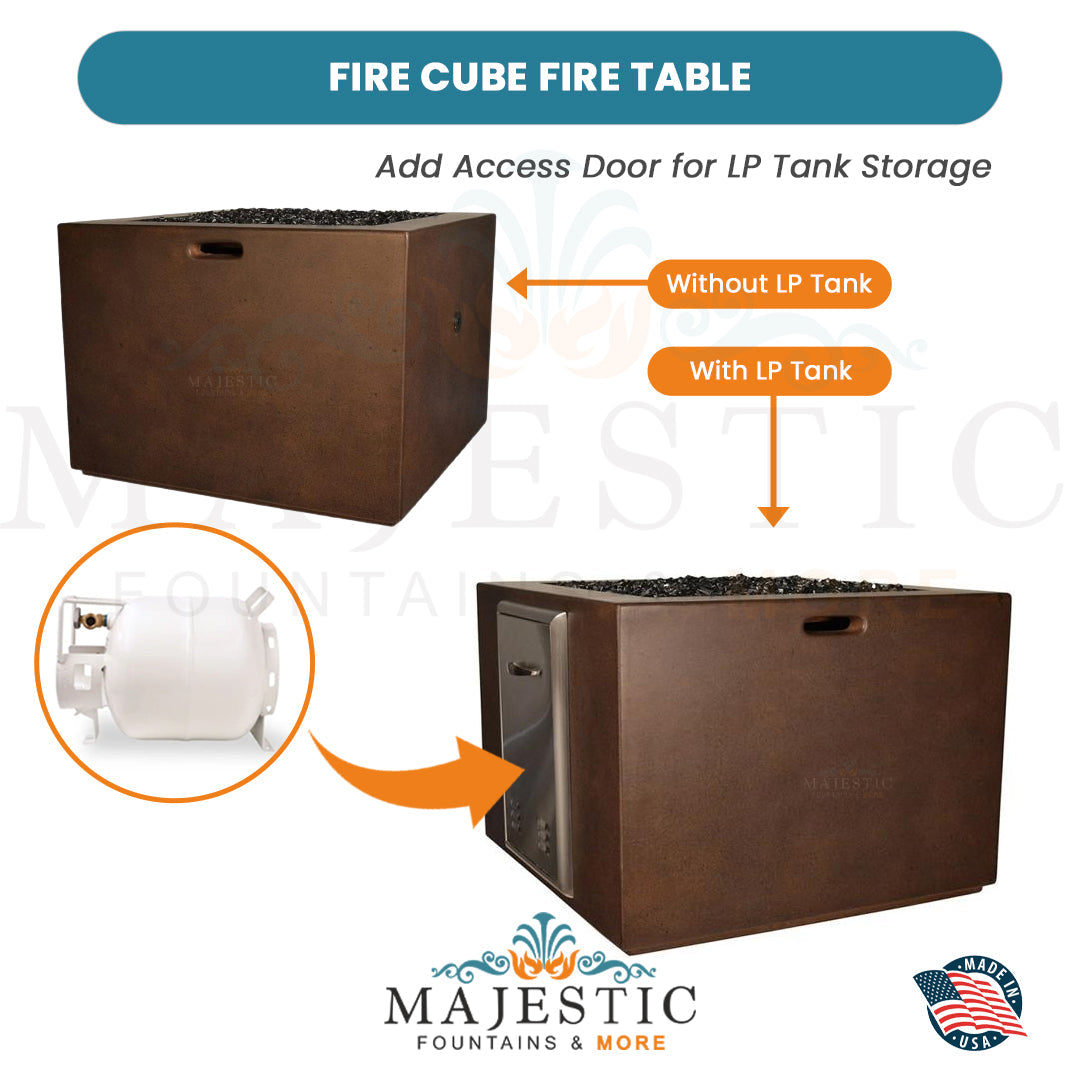

This Fire cube is available with Access Door that provides space for an LP tank.
The Electronic AWEIS (All Weather Electronic Ignition System) Ignition by Fire by design is an excellent upgrade to the Match-Lit version. The controls are simple and easy to use. To ignite the table, simply push the electronic start button on the access panel or optional remote, and the fire effortlessly starts. This system is specifically designed to keep your fire feature lit and will automatically re-light if the flame is blown out. The system will also automatically shut off if the flame can not be re-lit.

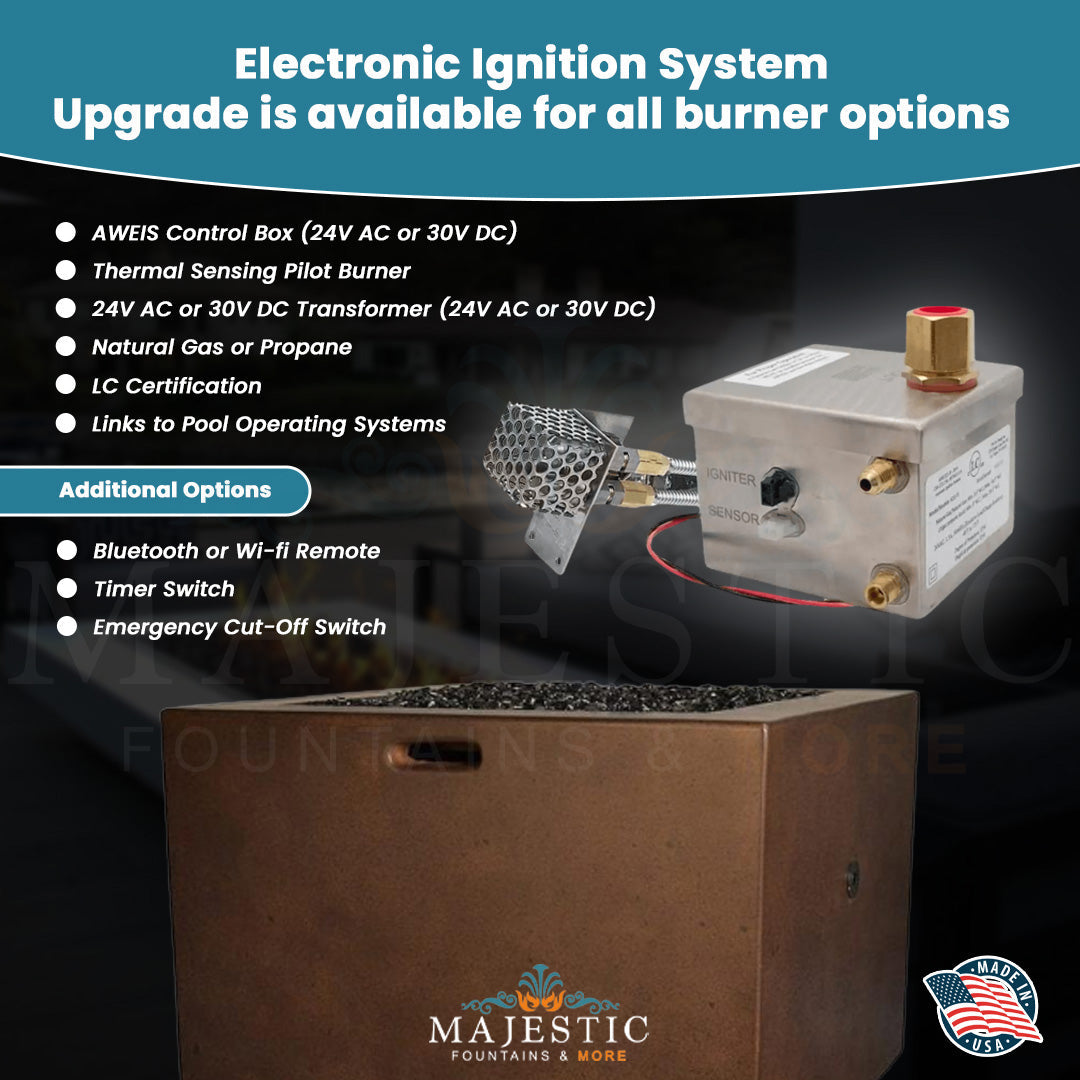

All Weather Electronic Ignition System UPGRADE is available for all burner options
- AWEIS Control Box (24V AC or 30V DC)
- Thermal Sensing Pilot Burner
- 24V AC or 30V DC Transformer (24V AC or 30V DC)
- Natural Gas or Propane (please specify)
- LC Certification
- Links to Pool Operating Systems

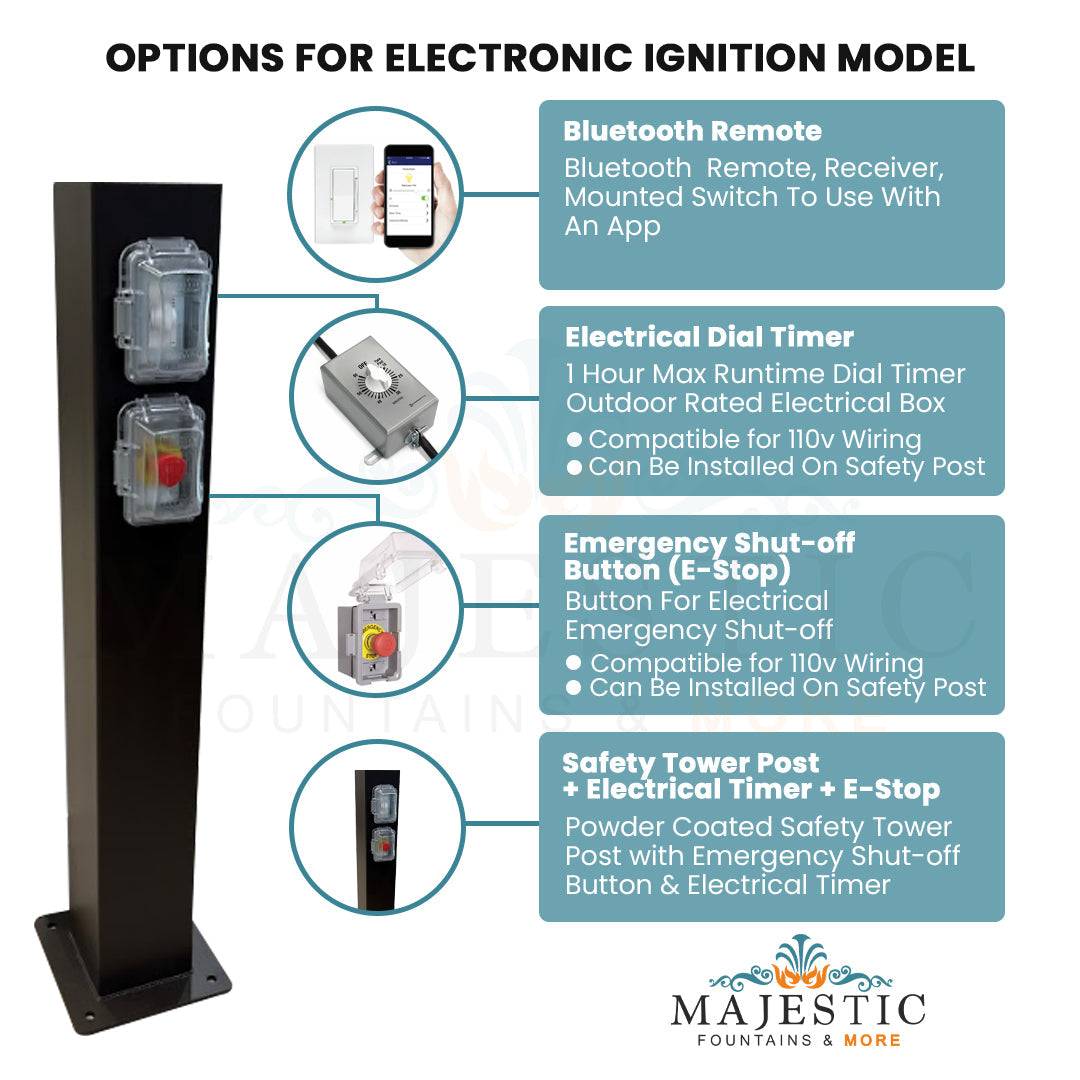

Options for Electronic Ignitions:
- Bluetooth Remote
- Electrical Dial Timer
- Emergency Shut-off Button (E-Stop)
- Safety Tower Post with Electrical Timer and E-Stop

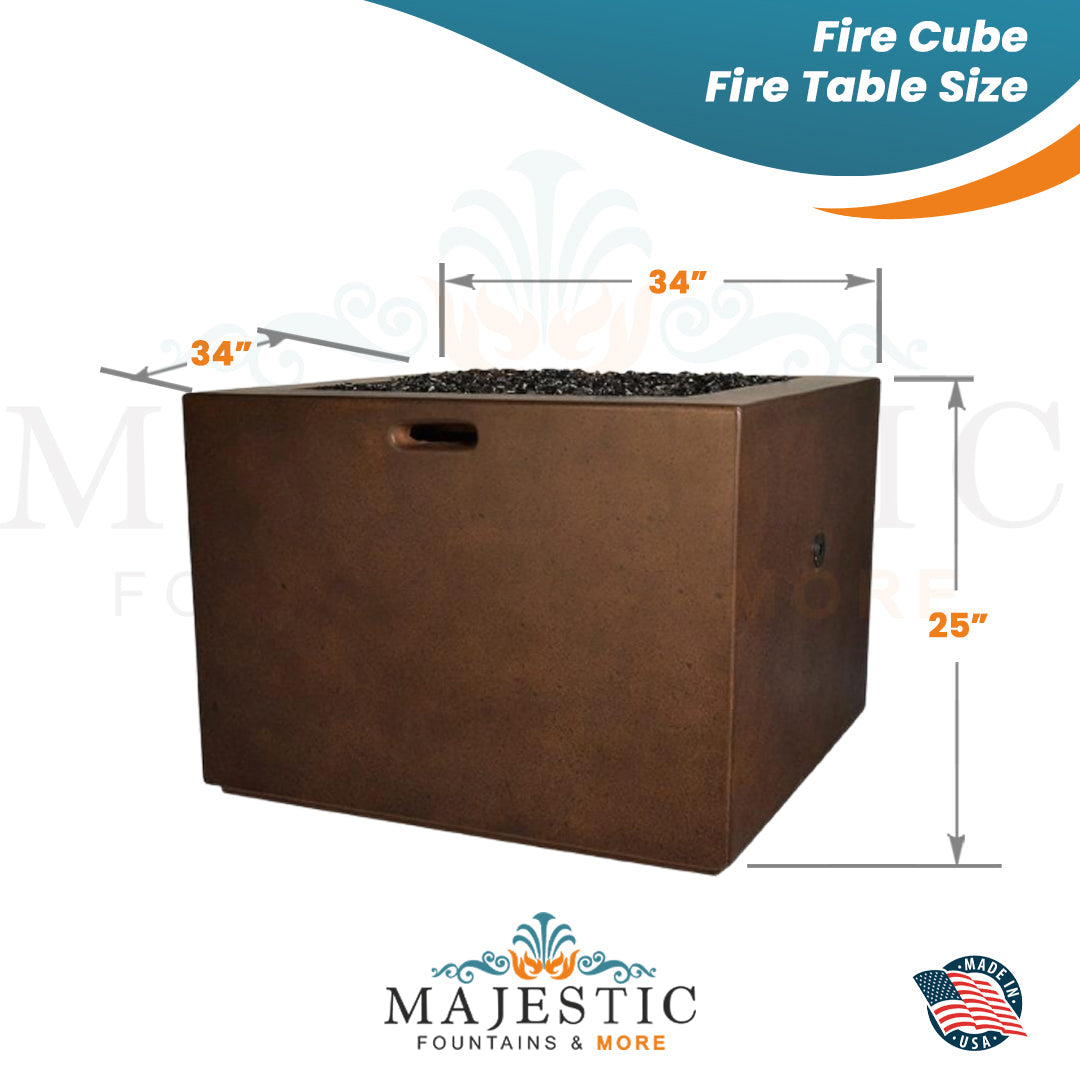

Specifications:
| SKU |
Length |
Width |
Height |
Base |
Support Plate |
Burner/BTU |
Weight |
| FGCUBE34-FT |
34" |
34" |
25" |
31" Sq.
|
24" Sq.
|
316 SS 12”/ 85K BTU
CrossFire 13"/ 120K BTU
|
265 lbs. |
| FGCUBE34-LP |
34" |
34" |
25" |
31" Sq. |
24" Sq. |
316 SS 12”/ 85K BTU
|
265 lbs. |
| Propane Enclosure Kit |
18" |
18" |
20" |
N/A |
N/A |
N/A |
220 lbs |
Burner Options: All Weather Electronic Ignition System UPGRADE is available for all burner options.
|

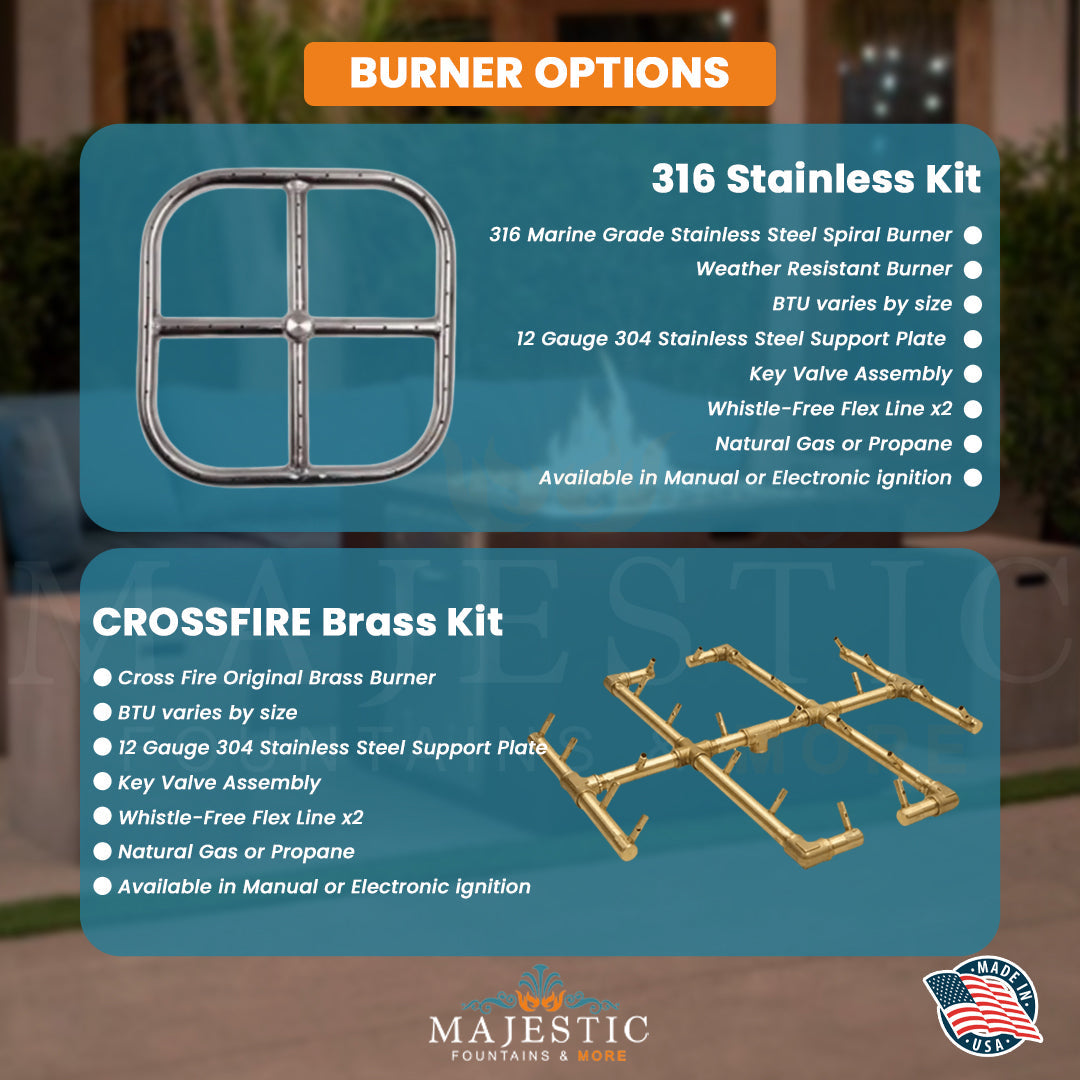

Burner Options
|
Details
|
|
316 Stainless Kit
|
- 316 Marine Grade Stainless Steel Square Burner
- Weather Resistant Burner
- BTU varies by size
- 12 Gauge 304 Stainless Steel Support Plate
- Key Valve Assembly
- Whistle-Free Flex Line x2
- Natural Gas or Propane (please specify)
- Available in Manual or Electronic ignition
|
|
CROSSFIRE Brass Kit
|
- Cross Fire Original Brass Burner
- BTU varies by size
- 12 Gauge 304 Stainless Steel Support Plate
- Key Valve Assembly
- Whistle-Free Flex Line x2
- Natural Gas or Propane (please specify)
- Available in Manual or Electronic ignition
|

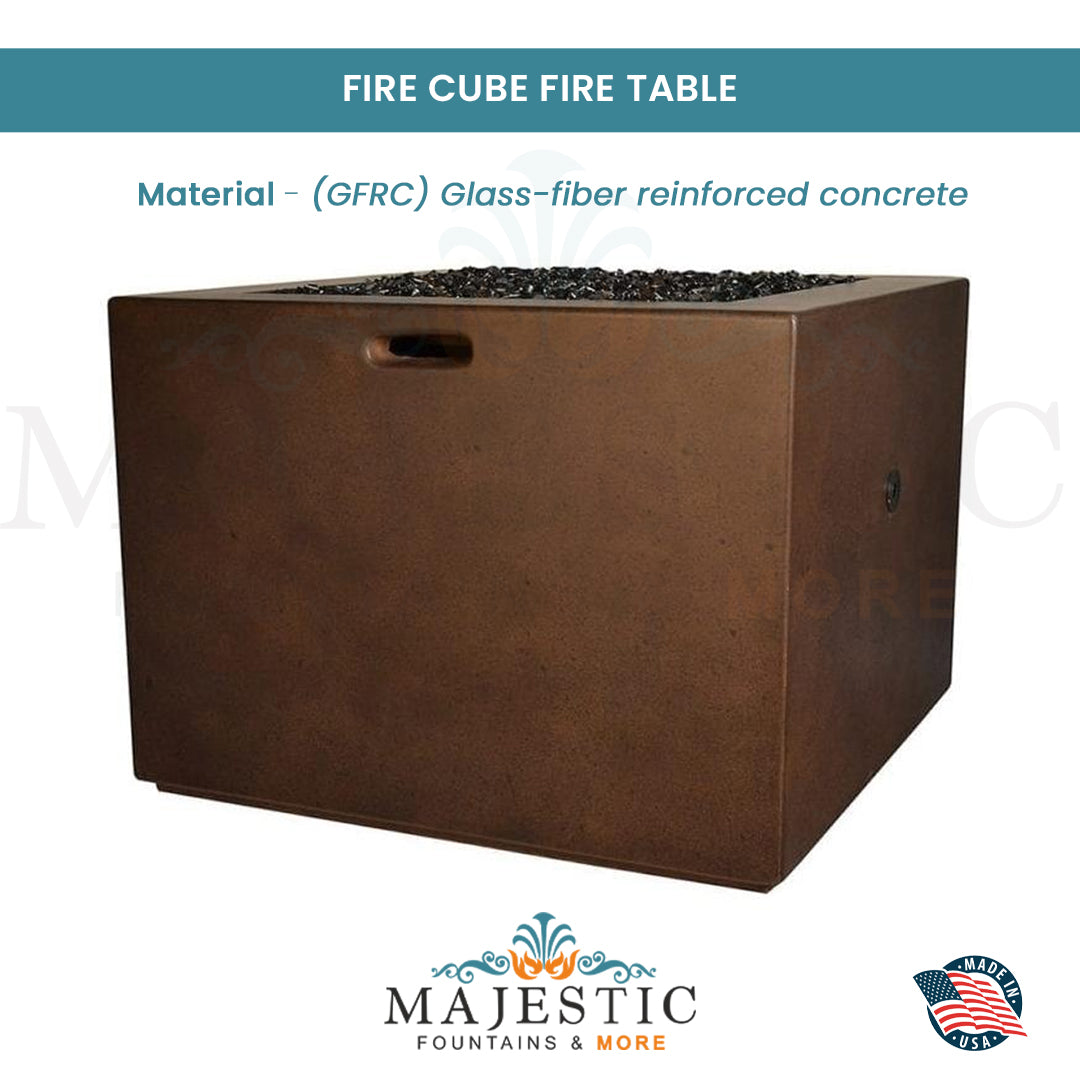

Material
Glass-fiber reinforced concrete (GFRC)
GFRC Process
Concrete bowls incorporate a concrete-glass fibre mix, resulting in a lighter but structurally stronger bowl. These decorative pieces are beautifully finished with a hand-applied process that includes multiple stains and washes and includes a final wax seal. The wax seal provides a deep, lustrous finish and protection against fading and discoloration from the outdoor environment. The wax seal requires direct sunlight to finish the curing process. Paint and quick drying cures are not used as this would sacrifice the quality and beauty of the finished products.
Product Manuals:
24V AWEIS Manual
PDF Manual System Install Guide
IMPORTANT: Installation must be done by a Licensed Technician.
Warranty: 1 year against manufacturing defects.
Shipping: We offer Free standard shipping on all our products. Usually ships on a pallet to any address in the Continental USA. The carrier will place your items curbside on your property but cannot assist with final placement. A Lift-gate charge may be applied for residential deliveries.
Manufacturing Lead Time: This is a Made-To-Order item, manufactured in the color specified on your order. The Manufacturing Lead time is approx 10 weeks.
Disclaimer:This product is considered a Custom Order as it is custom made upon order. The Patina/ Stain chosen is hand applied to the product along with finishing touches after it is manufactured in accordance with your order. The cancellation of a custom product will result in the forfeiture of the deposit.
